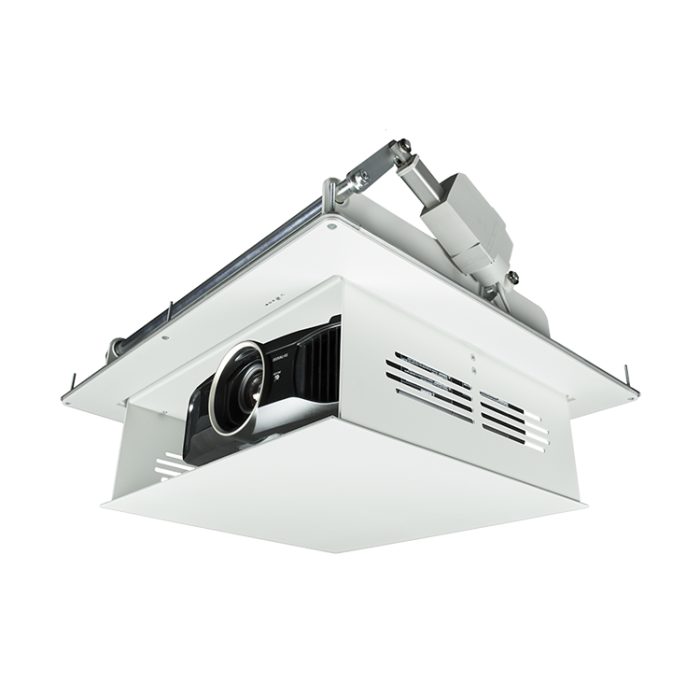

Pure Theatre CR40 Projector Lift

Pure Theatre CR40 Large Ceiling Recessed Projector Lift is one of our original lifts and is used for concealing projectors in your ceiling space, ideal for the Epson range or other similar sized projectors.

In Stock | Next Day Delivery Available

Color White

Description / Pure Theatre CR40 Projector Lift

CR40 Projector Lift


The CR40 projector lift is one of our original lifts used to hide your projector into the ceiling when it's not being used.

The motorised feature of the projector lift allows it to retract at the touch of a button.

Side View Dimensions

The side view shows the CR40 will fit in standard 8" joists, with a distance of 515mm between joists. It is normal to trim a section from one joist to fit the lift.

View Dimensions PDF


Rear View Dimensions

Looking from the rear view you can see that the width required above the plasterboard cutout is 590mm.

Note that the minimum width above the plasterboard is wider then the plasterboard cutout, as the actuators are wider and these step over the plasterboard when installed.

View Dimensions PDF

Key Features of our Projector Lifts

Concealed Solution

Concealed Solution

A unique lightweight aluminium construction encases the projector whilst retaining a smooth exterior profile. This enables home owners to have a fully recessed ceiling lift mechanism that is only seen when it’s meant to be.

Easy Installation

Easy Installation

As with our screens, lifts are designed with installation in mind, and can easily be fitted to standard ceilings creating the most compact in-ceiling projector lifts available. Our unique mounting system means you don’t even have to paint the ceiling after fitting

Built In Control System

Built In Control System

Designed and programmed in-house, our control system provides the most advanced features of any screen in the world.

Quiet and Precise

Quiet and Precise

Our 24v DC linear actuator drive motors provide the fastest, most reliable, and precise operation. Linked to our own advanced current sensing control system ensures that the ceiling lift closes seamlessly every time with near silent operation of only 35dB.

Advanced Construction

Advanced Construction

Whether its the hi-tech Drylin linear bearings or the lightweight aerospace grade alloy construction, that we bond rather than weld for superior performance, we ensure every detail has been meticulously worked out to provide the perfect motorised projector lift.

Software Configuration App

Software Configuration App

Do you want to change the way the projector lift operates, update firmware, or simply see how many times it’s gone up and down? Well now you can with our Control Pad software. Free to download, It has all the features you could possibly need.


Pure Theatre Projector Lift's can be Powder Coated in-house to allow for a custom finish in your choice of colour. For an additional charge, our expert engineers can help to conceal your Projector Lift just that bit further to allow for an effortless blend into any chosen living space.


Lead Time AvailabilityIn Stock
ManufacturerPure Theatre
Lift Dimensions (W x D x H)630cm x 58.5cm x 21cm
Max. Projector (W x D x H)47cm x 44cm x 19cm
Maximum Weight (kg)22 kg
Raise / Lower time5 seconds
Noise:35 decibels
Power Supply100-240VAC 50/60Hz
Power Usage max: 375W / Stationary:
Warranty5 years return to base
Weight (Kg)14 Kg
