Pure Theatre CR50 Projector Lift
Pure Theatre CR50 Projector Lift
Allow 3-5 Days to Manufacture
LEAD TIMES EXPLAINED
In Stock - Items marked as In stock are currently in our warehouse. Next day delivery is available at checkout If ordered before 2pm.
Available - Items marked as available are purchased from third parties, we try to give an accurate lead time but we cannot offer any guarantees.
Manufactured In-house - Items marked as such are manufacured to order right here at the Pure Theatre factory
Pre Order - Details of these items have been released by the manufacturer and are available to pre-order. We try to give an accurate lead time but we cannot offer any guarantees.
- SKU
- CR50-LFT
- Color
- White
Description

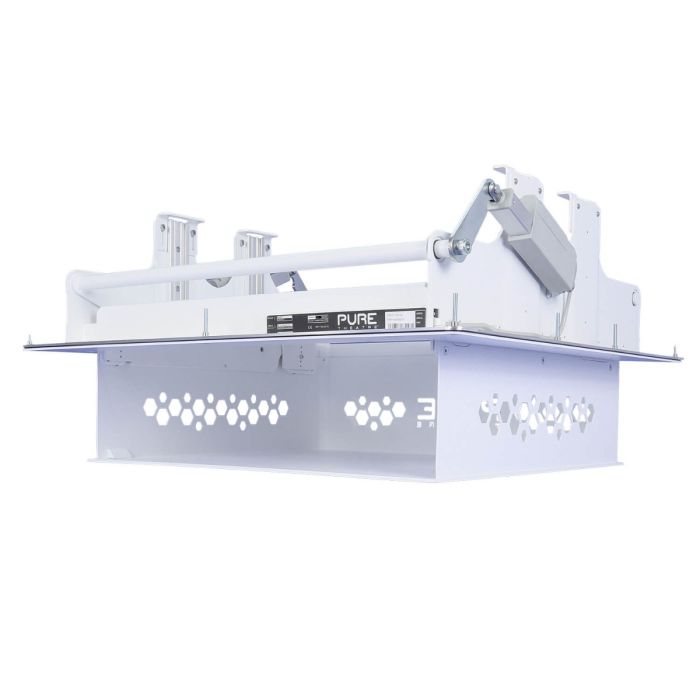

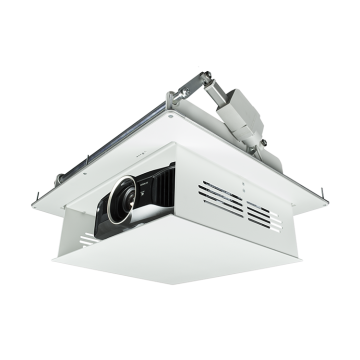

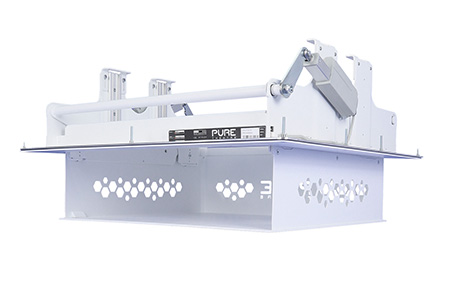

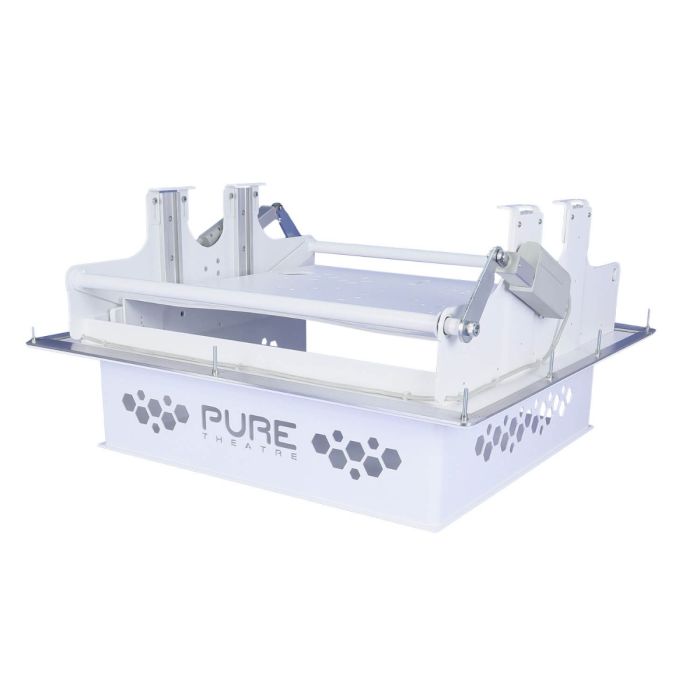

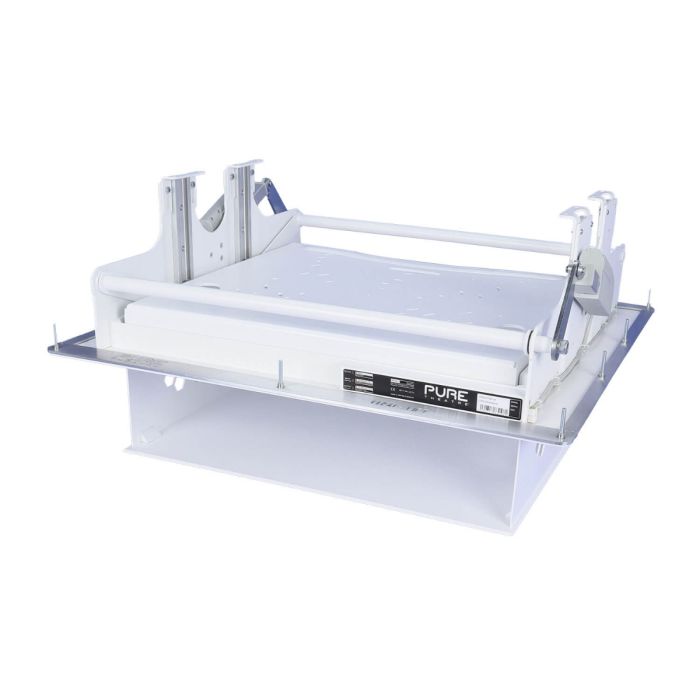

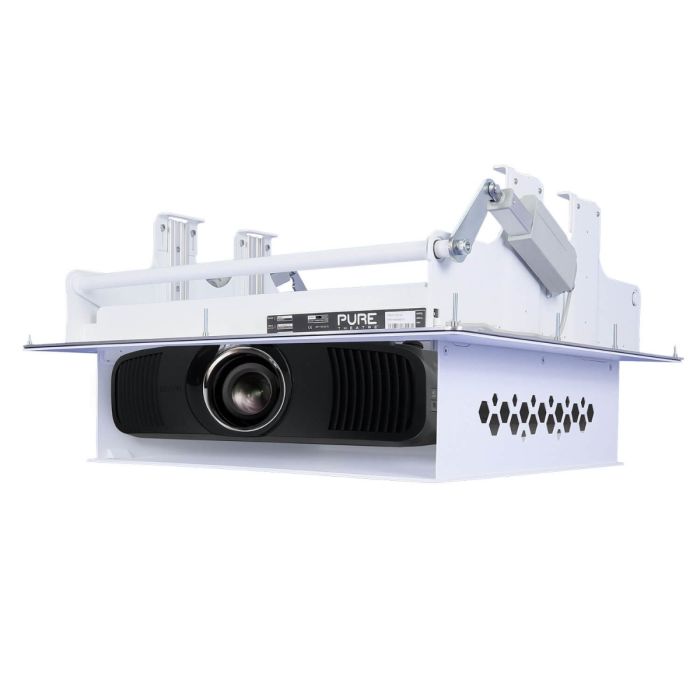

CR50 PROJECTOR LIFT
HIDE YOUR PROJECTOR

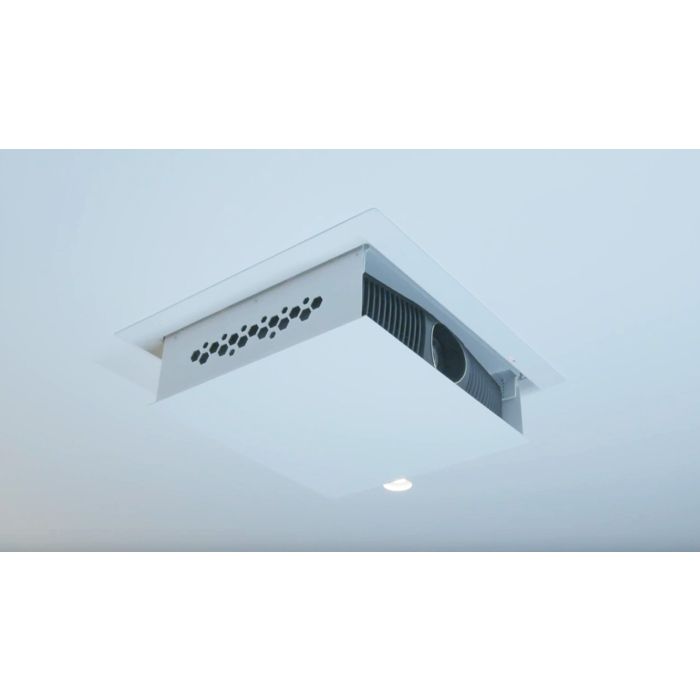

The CR50 projector lift is our most popular retractable projector ceiling mount used to hide your projector into the ceiling when it's not being used.

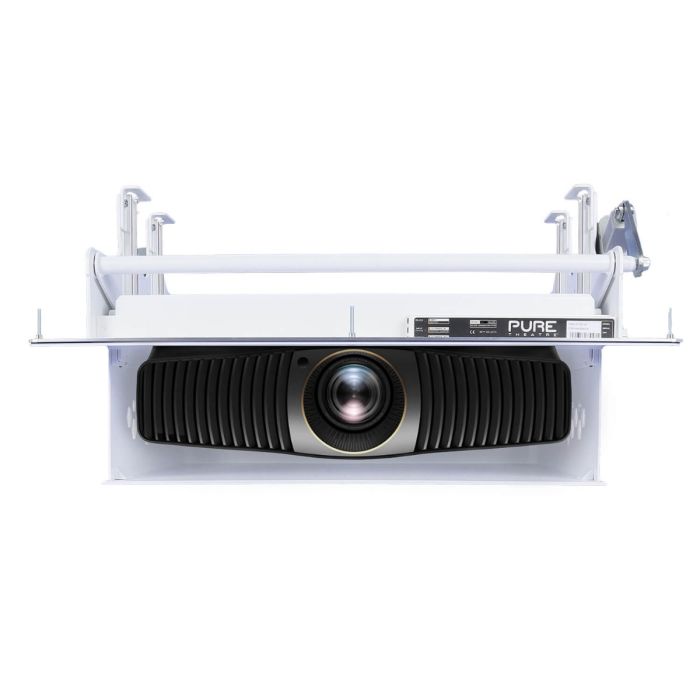

The CR50 Ceiling Lift fits all of the most popular 4K projectors allowing you to be future proof for years to come.
The motorised feature of the projector lift allows it to retract at the touch of a button.
KEY FEATURES
Concealed Solution

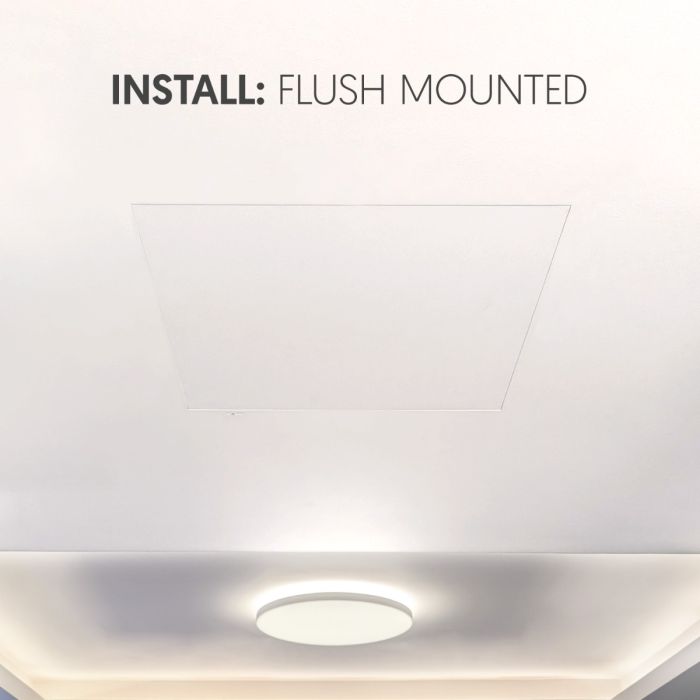

A unique lightweight aluminium construction encases the projector whilst retaining a smooth exterior profile. This enables home owners to have a fully recessed ceiling lift mechanism that is only seen when it’s meant to be.
Easy Installation

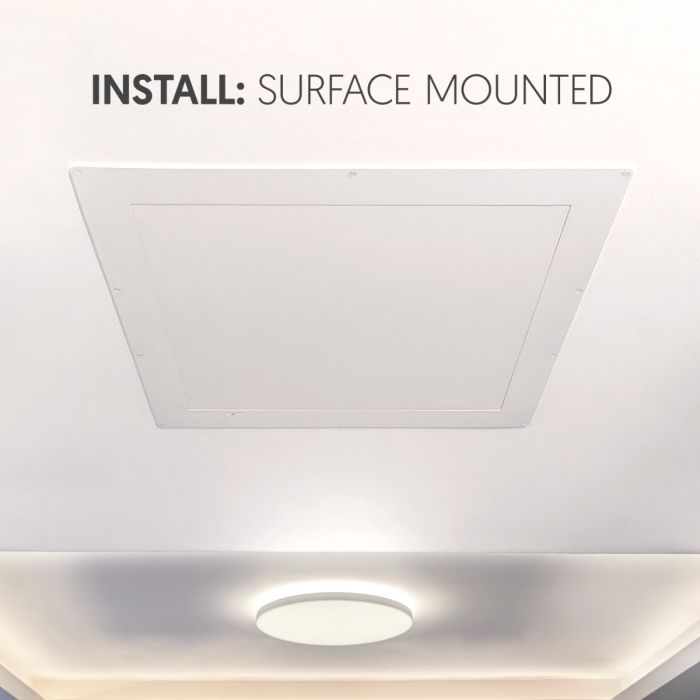

As with our screens, lifts are designed with installation in mind, and can easily be fitted to standard ceilings creating the most compact in-ceiling projector lifts available. Our unique mounting system means you don’t even have to paint the ceiling after fitting
Built In Control System
Designed and programmed in-house, our control system provides the most advanced features of any screen in the world.
Quiet and Precise
Our 24v DC linear actuator drive motors provide the fastest, most reliable, and precise operation. Linked to our own advanced current sensing control system ensures that the ceiling lift closes seamlessly every time with near silent operation of only 35dB.
Advanced Construction
Whether its the hi-tech Drylin linear bearings or the lightweight aerospace grade alloy construction, that we bond rather than weld for superior performance, we ensure every detail has been meticulously worked out to provide the perfect motorised projector lift.
Software Configuration App
Do you want to change the way the projector lift operates, update firmware, or simply see how many times it’s gone up and down? Well now you can with our Control Pad software. Free to download, It has all the features you could possibly need.
DIMENSIONS

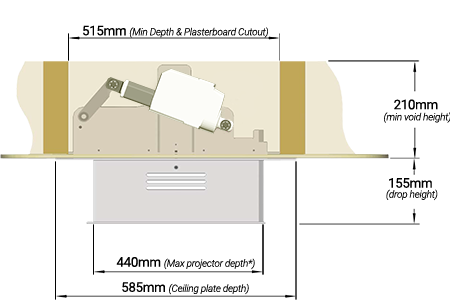

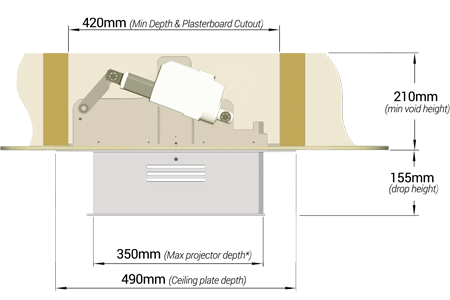

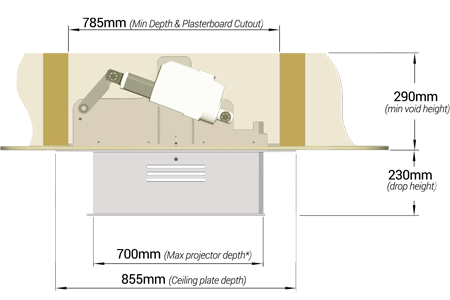

Side View
The side view shows the CR50 will fit in standard 8" joists, with a distance of 595mm between joists. It is normal to trim a section from one joist to fit the ceiling lift.
Rear View
The side view shows the CR50 will fit in standard 8" joists, with a distance of 595mm between joists. It is normal to trim a section from one joist to fit the lift.
CHOICE OF COLOURS

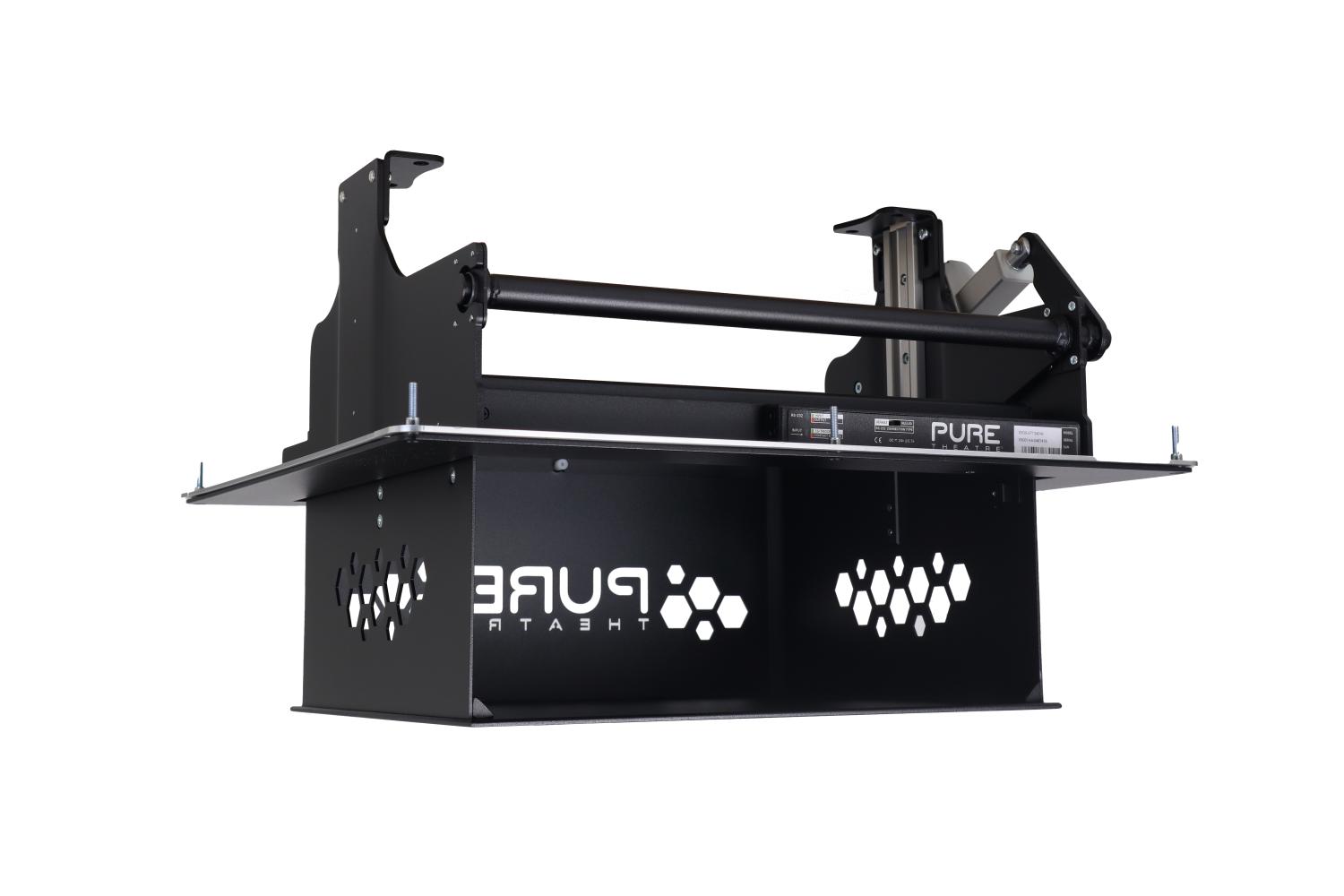

Pure Theatre Projector Lift's can be Powder Coated in-house to allow for a custom finish in your choice of colour. For an additional charge, our expert engineers can help to conceal your Projector Lift just that bit further to allow for an effortless blend into any chosen living space. Many customers choose black projector lifts to fit in with dark decor.

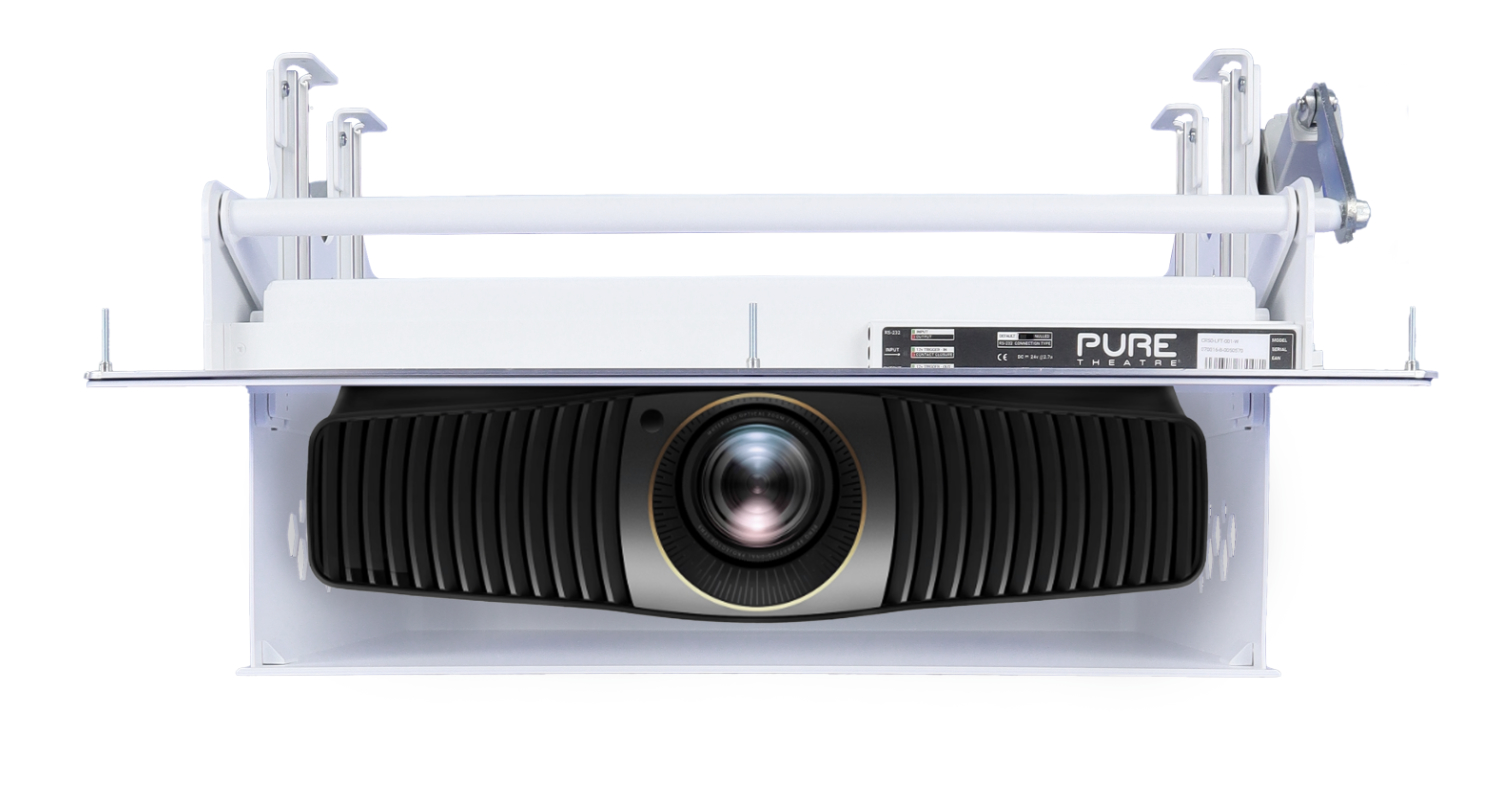

COMPATIBLE PROJECTORS
NOW FITS CHRISTIE PROJECTOR
Our design team have now manufactured a custom mounting tray so our CR50 projector lift is compatible with the Christie 4K860-iS Projector. Please contact us when placing your order to ensure we send the correct mounting tray.
Distance Calculator
Specifications
| SKU | CR50-LFT | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Lead Time Availability | Allow 3-5 Days to Manufacture | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Projector Compatability |
No lift found for that model. Please check your selection or contact us for advice.
View full compatibility list
← Scroll to see all columns →
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Manufacturer | Pure Theatre | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Color | White | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lift Dimensions (W x D x H) | 70cm x 67cm x 21cm | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Max. Projector (W x D x H) | 54cm x 52cm x 19cm (extendable to 22cm) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Travel | 16cm | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum Weight (kg) | 35 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Raise / Lower time | 5 seconds | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise: | 35 decibels | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 100-240VAC 50/60Hz | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Usage | max: 375W / Stationary: | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Warranty | 3 Years Return to base | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Width | 80 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Depth | 63 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Height | 30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Weight (Kg) | 19 |
Compatible Projectors
No lift found for that model. Please check your selection or contact us for advice.
← Scroll to see all columns →
| Brand | Model | Projector Lift |
|---|---|---|
| BenQ | W5800 | CR50 |
| W5850 | ||
| W4000i | CR35W | |
| W4100i | ||
| W2720 | ||
| HT2050 | ||
| TK705i | CR35 | |
| TK710STi | ||
| TK710 | ||
| Epson | EH-LS9000 | CR50 |
| EH-LS12000 | ||
| EH-LS11000 | ||
| EH-QB1000 | ||
| EH-TW9400 | ||
| EH-TW7000 | CR40 | |
| EH-TW7100 | CR40 | |
| EH-QL3000 | CR60 | |
| EH-QL7000 | ||
| JVC | DLA-NZ500 | CR50 |
| DLA-NZ700 | ||
| DLA-NZ800 | CR70 | |
| DLA-NZ900 | ||
| Sony | VPL-XW5100ES | CR50 |
| VPL-XW6100ES | CR60 | |
| VPL-XW8100ES | ||
| Optoma | UHZ66 | CR35 |
| UHZ58LV | ||
| UHZ68LV | CR50 | |
| Christie | 4K860-iS | CR50 |
Documentation
Reviews
Customer Reviews
Write Your Own Review
Similar
Related Blogs
Related Blogs
Frequently Asked Questions
- Which Projector Lift Do I Need?
-
Each of our projector lifts have different internal dimensions and therefore fit different projectors. We have specifically designed a large range of projector lifts to cover as many projectors as we can. To decide which lift is best for you, please use our projector compatibility chart to see which projector lift fits your
Read More - Mounting the Projector inside the Lift
-
Our projector lifts come with a projector mounting tray that makes it easy to install and remove your projector. Projectors should be mounted upside down. Mount the projector to the projector tray, ensuring the arrow points to the front of the projector. There are pre-drilled holes for the most popular projectors. Should you
Read More - What voltage? 110v or 240v
-
Our lifts and screens come complete with a worldwide power supply. Mains voltage input from 100v to 240v @ 50-60Hz.
