PROJECTOR LIFT COMPATIBILITY
If you are wondering which projector lift will fit your projector then we have made it easy. Select your brand and model and our calculator will tell you which projector lift to choose. If your model isn't listed please click compare all projector lifts to see the dimensions side by side.
No lift found for that model. Please check your selection or contact us for advice.
For the projector the following lifts are suitable
Please Note:
Will Fit In
Max Internal Dimensions
W
D
H
Ceiling Plate Dimensions
W
D
Plasterboard Cutout
W
D
Void Depth
A Pure Theatre Custom Ceiling Recessed Projector Lift is made to order and can be designed to suit your requirements.
Recommended Lift
Max Internal Dimensions
W
D
H
Ceiling Plate Dimensions
W
D
Plasterboard Cutout
W
D
Void Depth
A Pure Theatre Custom Ceiling Recessed Projector Lift is made to order and can be designed to suit your requirements.
View full compatibility list
← Scroll to see all columns →
| Brand | Model | Smallest Projector Lift | Recommended Projector Lift |
|---|---|---|---|
| BenQ | W5800 | CR50 | CR50 |
| W5850 | |||
| W4000i | CR35W | CR35W | |
| W4100i | |||
| W2720 | |||
| HT2050 | |||
| TK705i | CR35 | CR35 | |
| TK710STi | |||
| TK710 | |||
| Epson | EH-LS9000 | CR50 | CR50 |
| EH-LS12000 | |||
| EH-LS11000 | |||
| EH-QB1000 | |||
| EH-TW9400 | |||
| EH-TW7000 | CR40 | CR50 | |
| EH-TW7100 | |||
| EH-QL3000 | CUSTOM | CUSTOM | |
| EH-QL7000 | |||
| Pro Cinema 6050UB | CR50 | CR50 | |
| Home Cinema 3200 | CR40 | CR50 | |
| Home Cinema 3800 | |||
| JVC | DLA-NZ500 | CR50 | CR50 |
| DLA-NZ700 | |||
| DLA-NZ800 | CR60 | CR70 | |
| DLA-NZ900 | |||
| JVC DLA-NP5 | CR60 | CR60 | |
| JVC DLA-NZ5 | CR50 | CR50 | |
| JVC DLA-NZ7 | CR60 | CR60 | |
| JVC DLA-NZ8 | CR60 | CR60 | |
| JVC DLA-NZ9 | CR60 | CR60 | |
| JVC DLA-NX5 | CR60 | CR60 | |
| JVC DLA-NX7 | CR60 | CR60 | |
| JVC DLA-NX9 | CR60 | CR60 | |
| Sony | VPL-XW5100ES | CR50 | CR50 |
| VPL-XW6100ES | CR60 | CR60 | |
| VPL-XW8100ES | |||
| VPL-VW270ES | CR60 | CR60 | |
| VPL- VW260ES | CR50 | CR50 | |
| VPL-VW295ES | CR60 | CR60 | |
| VPL-VW285ES | CR50 | CR50 | |
| VPL-VW870ES | CUSTOM | CUSTOM | |
| VPL-VW890ES | |||
| VPL-XW5000ES | CR50 | CR50 | |
| VPL-XW6000ES | CR60 | CR60 | |
| VPL-XW7000ES | |||
| Optoma | UHZ66 | CR35 | CR35W |
| UHZ58LV | |||
| UHZ68LV | CR50 | CR50 | |
| Christie | 4K860-iS | CR50 | CR50 |
Compare all lift sizes
← Scroll to see all columns →

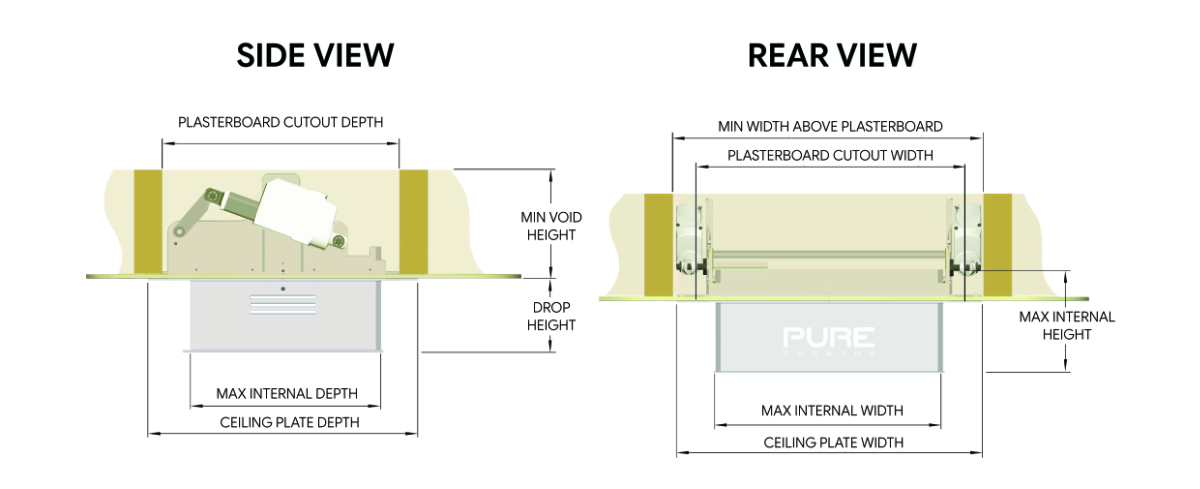

| Lift Model | Max Internal (mm) | Ceiling Plate (mm) | Plasterboard Cutout (mm) | Plasterboard Above (mm) | Void (mm) | Drop (mm) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Width | Depth | Height | Width | Depth | Width | Depth | Width | |||
| CR25 | 380 | 260 | 125 | 540 | 400 | 500 | 330 | 590 | 155 | 100 |
| CR35 | 380 | 350 | 190 | 540 | 490 | 500 | 420 | 590 | 210 | 155 |
| CR35W | 470 | 350 | 190 | 630 | 490 | 590 | 420 | 680 | 210 | 155 |
| CR40 | 470 | 440 | 190 | 630 | 585 | 590 | 515 | 690 | 210 | 155 |
| CR50 | 540 | 525 | 200 | 700 | 665 | 660 | 595 | 750 | 210 | 155 |
| CR60 | 550 | 600 | 270 | 730 | 755 | 690 | 685 | 780 | 235 | 190 |
| CR70 | 550 | 700 | 270 | 730 | 855 | 690 | 785 | 780 | 290 | 230 |
| CR90 | 550 | 900 | 270 | 730 | 1055 | 690 | 985 | 780 | 265 | 210 |
